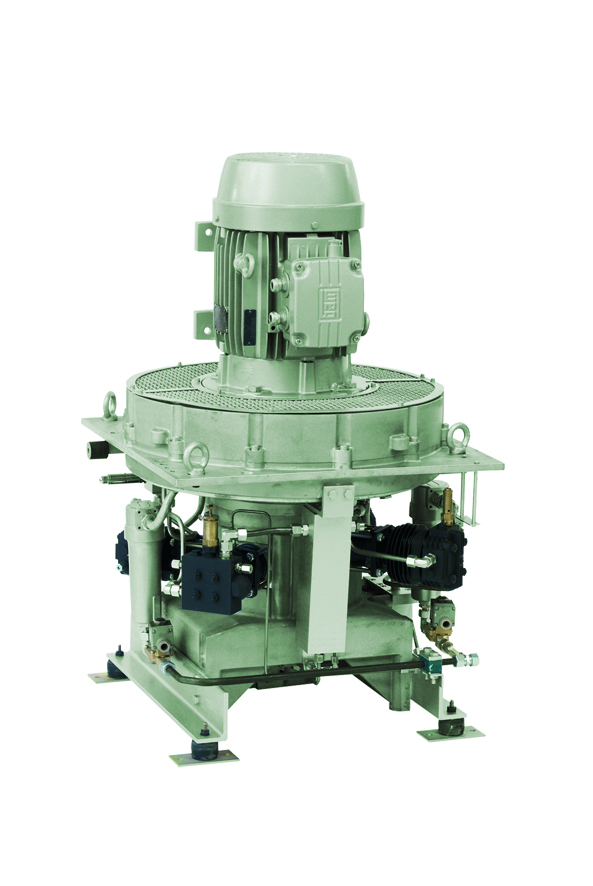

Tornado Series Boosters
Tornado Series Compressors are used for Air and Nitrogen compression. Each compressor is an air-cooled, single acting, three or four stage, reciprocating piston compressor with the combination of oil pressure fed crankshaft bearings, and cylinder oil splash with regulated injection for the final high-pressure piston plunger design. Performance with inert gases, such as Nitrogen.
Specifications
Stages/Cylinders | 3 Stage and 4 Stage |
Models | WP3325, WP4325 |
Operating Pressure Range | 2000 to 6090 psi |
Required Power | 6 to 20 hp |
Flow Rate | 6 to 18 SCFM |
Technical Data
Model | Stages / Cylinders | Operating Pressure Range (psig) | F.A.D. @ Max Pressure (scfm) | Motor Rating (hp) | F.A.D. @ Max Pressure (scfm) | Motor Rating (hp) |
---|---|---|---|---|---|---|
1800 RPM | 1200 RPM | |||||
WP3325 | 3/3 | 1668 – 4350 | 10 | 15 | 6 | 10 |
